Recessed Lighting Uneven: Causes, Tests and Fixes

When recessed lighting looks uneven, first identify what is changing: brightness, color, beam shape or behavior when dimmed. Dark gaps usually point to spacing or narrow light distribution; one unusually bright or dim opening suggests a mismatched lamp, trim or integrated fixture; and unevenness that appears only below full brightness often indicates a control-compatibility problem. Start with the non-electrical checks below. If the diagnosis requires opening a junction box, altering wiring, moving a housing or investigating signs of overheating, stop and use a licensed electrician.

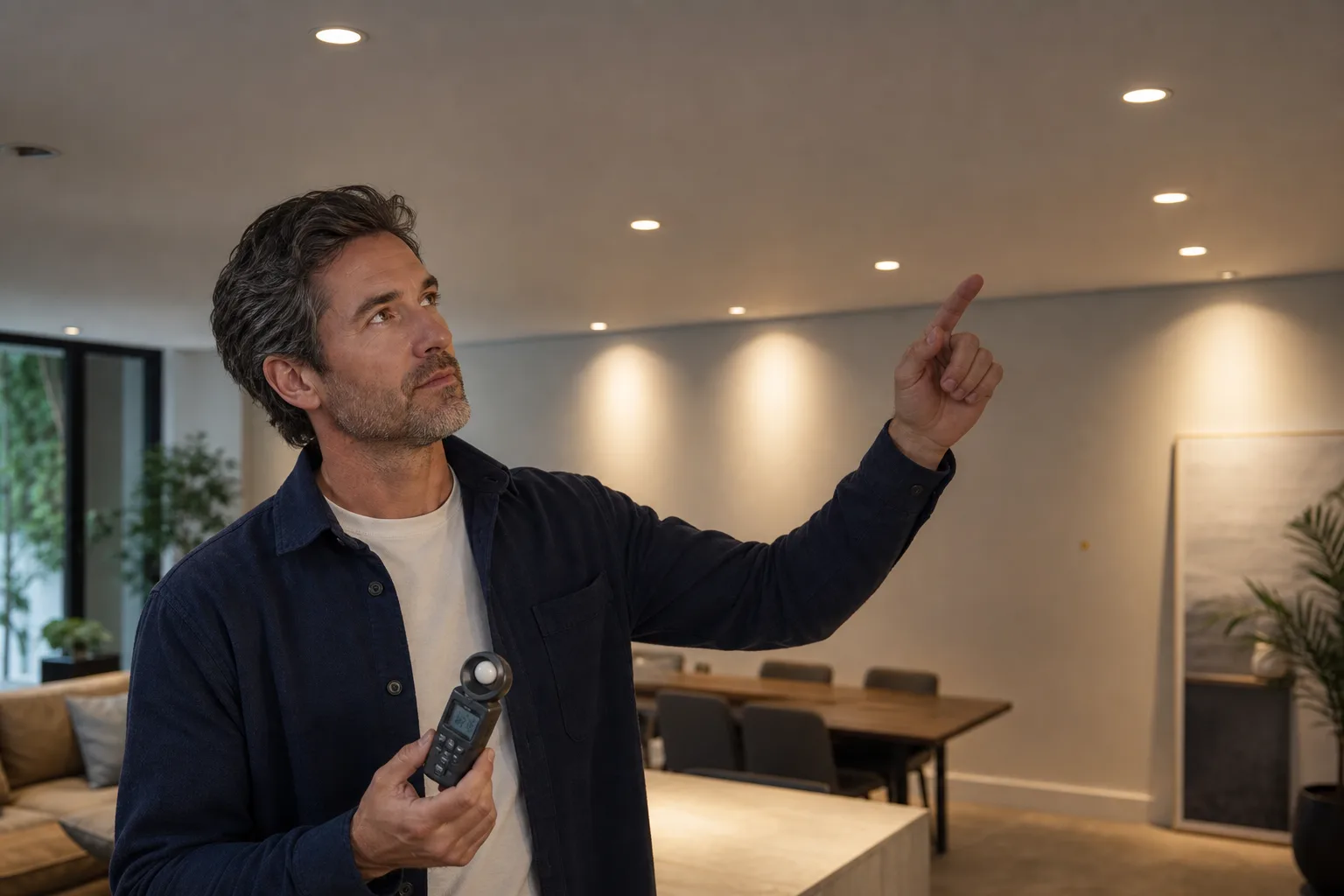

What uneven recessed lighting looks like

Unevenness is not one fault. The pattern you see provides the most useful first clue, so inspect the room with all recessed lights at full output before changing anything.

Common patterns and likely causes

Do not judge the layout solely by looking directly at the ceiling. Check the surfaces that matter: countertops, desks, floors, walls and artwork. Recessed lights may appear identical at the aperture while producing different distributions below.

Check lamps, trims and fixture settings first

The simplest explanation is often a mixed set of light sources. Watts describe electrical input, while lumens describe total visible light output. Two LED products using the same wattage can therefore produce different brightness. The U.S. Department of Energy recommends comparing LEDs by lumens rather than treating wattage as a brightness rating.^[1]

Compare each visible specification

• Lumens: Match rated output where uniform general lighting is the goal.
• Color temperature: Match the Kelvin value, such as 2700 K, 3000 K or 4000 K. Lower values look warmer and higher values look cooler.^[1]
• Beam angle or distribution: A narrow lamp concentrates light; a wide distribution spreads it over a larger area.
• CRI: Different color-rendering performance can make finishes and furnishings look inconsistent even when measured brightness is similar.
• Trim type: Reflectors, baffles, adjustable trims and wall-wash trims do not distribute light in the same way.
• Selectable settings: Some integrated downlights have switches for color temperature or lumen output. Confirm that every unit is set alike, but switch off the circuit before removing a trim or reaching above the ceiling plane.

ENERGY STAR downlight criteria address light output, distribution, color appearance, color quality and color consistency across a beam. Product documentation should also identify available color settings and, for dimmable products, compatible or incompatible controls.^[2]

Use a controlled substitution only when appropriate

If the fixtures use replaceable lamps, are cool, undamaged and safely reachable, switch the circuit off and exchange the suspect lamp with a known matching lamp from another opening. If the dim area moves with the lamp, the lamp is the likely cause. If it stays at the same opening, the housing, trim, supply or local environment may be involved. Do not interchange integrated LED modules unless the manufacturer explicitly permits it, and do not disturb hardwired connectors or junction-box wiring.

Test whether spacing and beam angle fit the room

A regular ceiling grid does not guarantee regular illumination. Distribution, mounting height, wall reflectance, furniture and task locations all influence the result. The Illuminating Engineering Society defines a luminaire's spacing criterion as an estimated maximum ratio of luminaire spacing to mounting height above the work plane for acceptably uniform direct illuminance in a regular array.^[3]

Use spacing criterion when the manufacturer provides it

The basic relationship is:

Maximum spacing = spacing criterion × mounting height above the work plane

For example, assume a recessed fixture has an SC of 1.1 and is 5.5 feet above a countertop or desk surface. The estimated maximum center-to-center spacing is 1.1 × 5.5 = 6.05 feet. This is a preliminary planning check, not a guarantee: the criterion may differ in two directions, and room surfaces and layout edges still matter. Use the product's photometric file or professional lighting calculations when uniformity is critical.

Estimate beam spread

If a manufacturer gives a beam angle, a simple geometric estimate of beam diameter at a target plane is:

Beam diameter = 2 × distance × tan(beam angle ÷ 2)

With an 8-foot ceiling, a 2.5-foot work plane and a 60-degree beam, the distance is 5.5 feet. The estimated diameter is 2 × 5.5 × tan(30°), or about 6.35 feet. This does not mean the entire circle has equal brightness. Beam-angle boundaries are photometric reference points, and useful overlap depends on the actual intensity distribution.

DOE guidance notes that mismatching the distribution of a retrofit lamp and its existing fixture can create an uneven or narrow result.^[4] Before buying replacements, compare beam angle, distribution diagrams and intended fixture type rather than relying only on aperture size.

Account for walls, daylight and layered lighting

Sometimes the downlights are operating correctly but the room still feels patchy. Dark paint, tall cabinets, beams, glossy counters and deep furniture arrangements can change both reflected light and perceived brightness. Daylight can also make the window side look bright during the day and comparatively dim after sunset.

Look beyond horizontal light levels

Downlights aimed at the floor may leave walls and faces relatively dark. Because vertical surfaces occupy much of the field of view, adding light to them can make a room feel more balanced without increasing every recessed fixture's output. Depending on the room, useful layers may include:

• Under-cabinet or localized task lighting for counters and work areas
• Wall-wash or adjustable accent lighting for vertical surfaces
• Pendants over islands or tables
• Sconces or portable lamps near seating
• Low-glare ambient lighting that fills shadows between concentrated beams

See the guides to layered lighting, beam angle and planning home lighting before adding more ceiling fixtures. More lumens alone may intensify bright spots while leaving the underlying distribution problem unchanged.

Measure consistently

A phone sensor can help compare relative readings at several points, but it should not be treated as a calibrated illuminance meter. Keep the device at the same height and orientation, avoid casting a shadow over it, close blinds to reduce daylight variation and record readings at full output. For a basic uniformity comparison, divide the lowest reading by the average:

Uniformity ratio = minimum illuminance ÷ average illuminance

For example, 90 lux minimum divided by 150 lux average equals 0.60. Use this number to compare the room before and after a change, not as a universal pass/fail threshold. Appropriate targets depend on the room, visual task and applicable lighting guidance. Learn more about lux and foot-candles.

Rule out dimmer and control problems

If recessed lighting becomes uneven only when dimmed, the fixtures may have different LED drivers, different low-end capabilities or an incompatible control. ENERGY STAR advises checking the downlight manufacturer's compatibility information because not every LED works properly with every dimmer.^[2]

Run a safe control check

1. Set tunable or smart fixtures to the same color and brightness commands.
2. Raise the wall control to full output and wait several minutes.
3. Reduce it gradually while watching for one fixture dropping out early, changing color, flickering or lagging.
4. Confirm that all installed downlights have the same model number and dimming specification.
5. Check the fixture manufacturer's published compatible-dimmer list and the permitted number of fixtures per control.

A low-end trim adjustment may improve behavior when the dimmer and fixtures are confirmed compatible, but follow the control manufacturer's instructions. Do not remove the wall plate or access line-voltage wiring as a diagnostic step. For replacement guidance, see how to choose an LED dimmer. Persistent flicker should be evaluated separately using the LED flickering guide.

Choose the least disruptive effective fix

Fix mismatched light sources

Replace mismatched lamps as a coordinated group using the same model, lumen output, color temperature and distribution. For integrated fixtures, matching the exact model is preferable; products from the same brand can still use different drivers or optics. If an exact match is unavailable, replacing all fixtures in the visually connected area may give a more consistent result than mixing generations.

Fix narrow beams or dark gaps

Where housings are correctly located, a compatible wider-distribution lamp or retrofit trim may improve overlap. Verify housing dimensions, lamp type, wet-location needs and IC or airtight requirements before selection. Never install a higher-wattage lamp than the fixture label permits.

Fix poor layout with lighting layers

Moving or adding recessed fixtures is usually the most invasive option and can involve wiring, ceiling repair, structural obstructions and insulation requirements. First consider whether task lights, wall lighting or a better-distributed retrofit can solve the actual visibility problem. Use the recessed lighting calculator and recessed-light spacing guide for preliminary planning, then confirm the proposal against manufacturer photometric data.

Know the electrical-safety boundary

Arrange service by a licensed electrician if a fixture cycles off and on, smells hot, shows discoloration, crackles, remains abnormal with a verified matching lamp, or requires wiring or housing changes. Recessed luminaires must also be suitable for their insulation conditions. ENERGY STAR distinguishes Type IC products intended for insulation contact from non-IC products that require clearance, while UL explains that product markings govern insulation contact and minimum spacing.^[2][5] Do not pull insulation away, add insulation around a housing or assume a wafer-style light has the same installation requirements as an existing can. Electrical installations are subject to applicable codes, product listings and local inspection requirements.

Final troubleshooting checklist

• Identify whether the variation is brightness, color, beam shape or dimming behavior.
• Compare model numbers, lumens, Kelvin values, beam angles, trims and selectable settings.
• Inspect task surfaces and walls, not just the ceiling apertures.
• Measure fixture spacing and height above the relevant work plane.
• Use photometric data or spacing criterion where available.
• Test the system at full output before judging dimmed performance.
• Confirm dimmer compatibility from manufacturer documentation.
• Consider layered lighting before adding more downlights.
• Stop using a light that cycles, overheats, smells abnormal or shows damage.
• Use a licensed electrician for wiring, housings, junction boxes, unexplained faults or insulation concerns.

The most reliable correction addresses the observed pattern rather than applying a generic spacing rule. Matching the light sources and controls is usually the least disruptive starting point; changing distribution or adding a lighting layer comes next. Altering the ceiling layout should follow careful planning and professional electrical review.
