IC Rated Recessed Lights: What It Means and When It Matters

IC rated recessed lights are luminaires evaluated for installation in direct contact with thermal insulation, subject to their product markings and instructions. The initials stand for “insulation contact.” This rating matters whenever a recessed fixture, remote driver or associated enclosure enters an insulated ceiling or wall cavity. It does not automatically mean that the light is airtight, suitable for spray foam, approved for a wet location or able to preserve a fire-rated ceiling. Those are separate questions.

What does IC rated mean?

A recessed light places electrical and heat-producing components above the finished ceiling. If insulation surrounds a product that was not designed for that condition, heat may be trapped instead of dissipating as intended. A Type IC luminaire has been evaluated for the insulation-contact installation described by its listing and manufacturer instructions.

ENERGY STAR advises choosing Type IC when insulation will touch a new downlight. It also notes that non-IC products commonly require at least 3 inches of clearance from insulation.^[1] The National Electrical Code language considered by NFPA similarly identifies 75 mm, or 3 inches, of clearance from recessed-luminaire components unless the luminaire is identified as Type IC.^[2]

The rating applies to the luminaire system

Do not judge the installation only by the visible LED trim. A traditional recessed assembly may include a housing, trim and replaceable lamp. A canless product may include a wafer, cable, junction box and separate LED driver. Follow the markings and instructions for the complete listed combination. Installing an LED bulb or retrofit trim in an old can does not, by itself, convert a non-IC housing into an IC-rated housing.

Some convertible recessed luminaires obtain their permitted installation type from a specified combination of housing, trim and light source. UL guidance therefore emphasizes matching the components identified by the manufacturer.^[3]

When does the IC rating matter?

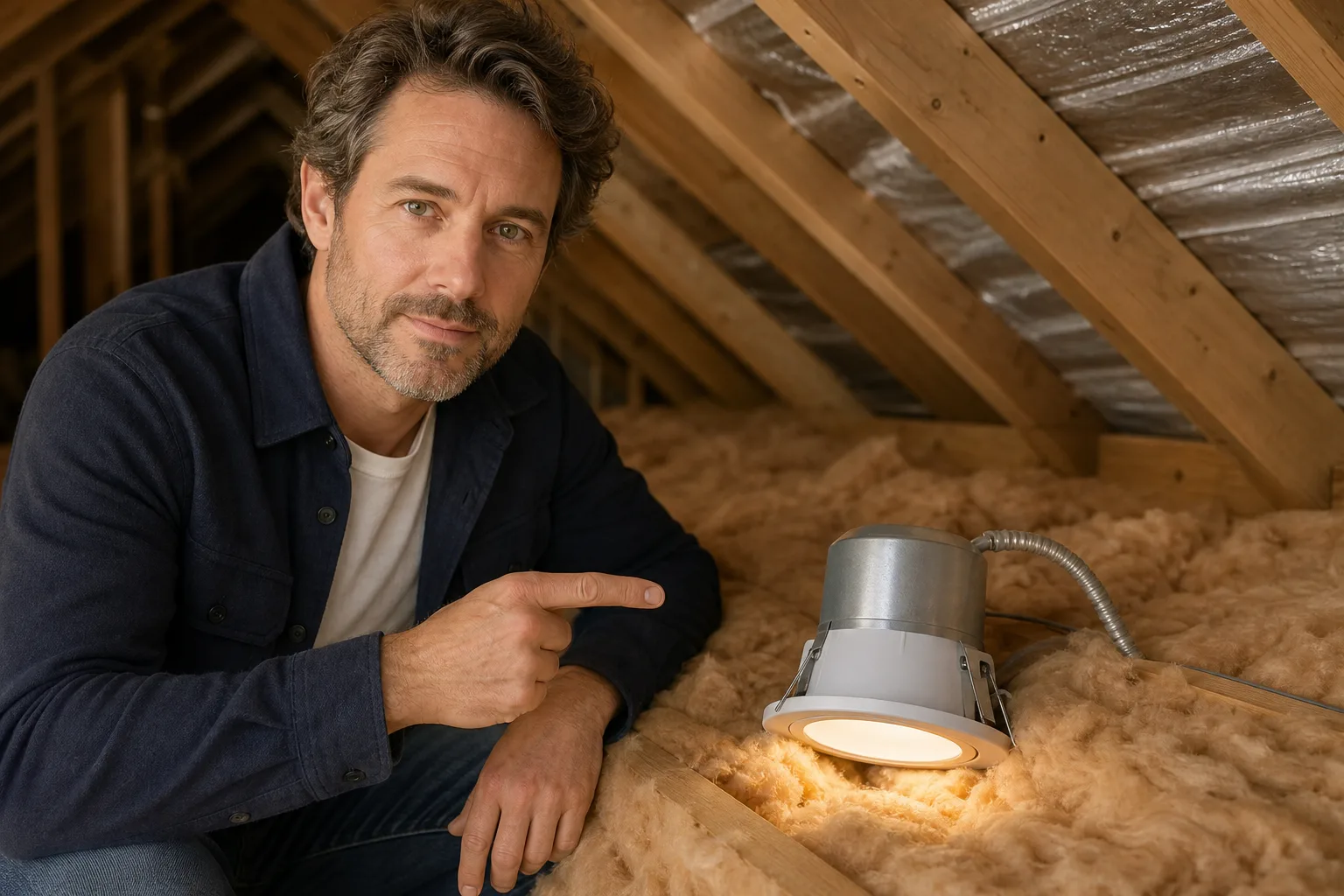

The rating is important wherever insulation could touch or cover the recessed-lighting system, including insulated attic floors, sloped roof assemblies, exterior-facing ceilings and insulated wall cavities. It also matters during later energy upgrades: a fixture that originally stood in an empty cavity may be surrounded when an attic contractor adds blown insulation.

Common installation situations

If a label is missing, painted over or inaccessible, do not infer a rating from the fixture's age, shape or operating temperature. Record the manufacturer and model number if available and obtain the instructions. Otherwise, ask a licensed electrician to identify the assembly before insulation is moved or added.

IC, airtight and fire-rated are not the same

IC versus airtight

IC addresses contact with insulation. Airtight, often shown as “AT,” addresses air movement through the ceiling penetration. A product may be IC, airtight, both or neither. For a downlight below an unconditioned attic, an ICAT product combines two useful characteristics: permitted insulation contact and tested air-leakage performance. Installation quality still matters because gaps around the ceiling cutout can bypass an airtight housing.

ENERGY STAR recommends considering Type AT below an unconditioned attic so conditioned air is less likely to escape through the downlight opening.^[1] Use the specified gasket or sealing method rather than placing generic foam or caulk against electrical parts.

IC versus spray-foam compatible

Do not assume that ordinary IC identification permits an installer to encase a fixture in expanding foam. UL 1598 includes a separate evaluation and marking for recessed luminaires intended to contact qualifying low- or medium-density spray foam. UL describes markings such as “SPCL” or wording that states the permitted foam condition.^[4] Confirm both the luminaire marking and the insulation manufacturer's requirements before work begins.

IC versus fire-resistance classification

An IC rating does not preserve the hourly fire resistance of a floor-ceiling or roof-ceiling assembly. UL explains that recessed penetrations in fire-resistive construction need an evaluated luminaire, an approved protective enclosure or another arrangement included in the tested assembly.^[5] This issue frequently requires coordination among the electrician, building designer and local authority having jurisdiction.

How to choose an IC-rated recessed light

Start with the safety and installation requirements, then choose the optical characteristics. A bright light with the wrong listing is not an acceptable substitute for a product suited to the ceiling construction.

Product-selection checklist

• Certification and marking: Look for Type IC identification from a recognized testing laboratory and retain the installation instructions.
• Construction type: Select a new-construction housing, remodel housing, listed retrofit system or canless assembly appropriate for the project.
• Insulation: Identify whether the cavity contains fiberglass, cellulose, mineral wool, rigid foam or spray foam.
• Air control: Below unconditioned space, consider an airtight product and the specified ceiling gasket or seal.
• Location: Check damp- or wet-location markings where moisture or direct water exposure is possible.
• Ceiling assembly: Verify compatibility with fire-rated construction, shallow cavities, joists and ducts.
• Light output: Compare lumens, not just watts. Lumens describe light output; watts describe electrical power.
• Beam and glare: Choose an aperture, beam angle and trim that light the intended surfaces without uncomfortable brightness.
• Color: Coordinate correlated color temperature and color rendering with the room's other light sources.
• Controls: Confirm that the LED and dimmer appear on the relevant compatibility documentation.

For replaceable-lamp housings, use only lamp shapes and wattages allowed on the luminaire label. For integrated LEDs, consider whether the driver can be accessed from the room side and whether a replacement module is available. ENERGY STAR also cautions that not every LED works well with every dimmer and recommends checking published compatibility information.^[1]

Plan the room before cutting the ceiling

IC status makes a fixture suitable for a particular thermal environment; it does not determine how many lights a room needs. Recessed downlights generally work best as one layer in a broader plan that may also include pendants, sconces, under-cabinet lighting, portable lamps or daylight.

Estimate total lumens

A simple starting estimate is:

Total lumens = room area in square feet × target foot-candles

One foot-candle represents one lumen per square foot. For example, a 12-by-14-foot room has an area of 168 square feet. Using an assumed general-lighting target of 15 foot-candles gives 168 × 15 = 2,520 lumens. This is a planning estimate rather than a code requirement. It does not account for wall colors, fixture efficiency, dirt, daylight, ceiling height or task difficulty.

If each proposed downlight produces 600 lumens, 2,520 ÷ 600 = 4.2 fixtures. Rounding directly to five may still produce uneven lighting, so compare plausible layouts and beam coverage. Six dimmable fixtures might create a more balanced grid while providing useful adjustment, but the right answer depends on the room and photometric data. The recessed-lighting calculator can help organize the estimate.

Check beam spread and spacing

For a symmetrical beam, an approximate beam diameter at a surface is:

Beam diameter = 2 × throw distance × tan(beam angle ÷ 2)

Assume an 8-foot ceiling, a 2.5-foot-high work plane and a 60-degree beam. The throw distance is 5.5 feet, producing an approximate beam diameter of 6.35 feet at the work plane. This calculation describes the nominal beam boundary, not uniform spacing. Adjacent beams normally need useful overlap, and walls may need dedicated illumination to avoid a bright floor under a dark perimeter.

Place lights according to cabinets, furniture, counters and artwork rather than forcing a decorative grid onto the ceiling. Keep downlights out of direct sightlines where possible, and use wall washing or task lighting when vertical surfaces matter. See the guides to layered lighting and recessed-light spacing for the next planning steps.

Installation and electrical safety

Replacing a lamp may be straightforward, but installing or replacing a recessed housing can involve branch-circuit wiring, hidden junctions, insulation, structural members and required permits. Hire a licensed electrician when new wiring is needed, the fixture rating is uncertain, conductors or boxes show heat damage, the ceiling is fire rated, spray foam is involved, or local rules require permitted work.

1. Confirm the ceiling construction, insulation type and available cavity depth.
2. Verify every applicable product marking before making a ceiling opening.
3. Follow the listed cutout size, support method, wiring limits and component pairings.
4. Keep insulation away from non-IC products by the clearance stated on the label and in the locally adopted electrical code.
5. Do not improvise a cover, bury an unverified junction box or coat a luminaire with spray foam.
6. Use only manufacturer-approved trims, lamps, drivers, gaskets and accessories.
7. Arrange any required inspection before the work is concealed.

Electrical codes and adopted editions vary by jurisdiction. The manufacturer's listing instructions and local authority having jurisdiction govern the actual installation; a general guide cannot confirm compliance for a specific building.

Troubleshooting overheating, cycling and flicker

A recessed light that repeatedly switches off and returns after cooling may be activating thermal protection. Possible causes include an incorrect lamp, excessive lamp wattage, insulation around a non-IC housing, mismatched components or restricted heat dissipation. Treat repeated cycling as a warning rather than a nuisance to bypass.

Turn the light off and arrange professional inspection if there is a burning smell, visible discoloration, melted material, damaged wiring or unexplained breaker operation. Do not reach into an energized housing or move insulation around live electrical equipment.

Flicker, buzzing or poor low-end dimming more often points to control compatibility, a failing driver or a loose electrical connection. Begin with the manufacturer's dimmer list and the guides to LED flickering and LED buzzing. If several lights behave differently on the same circuit, document the model numbers and symptoms for the electrician.

The practical rule is simple: where insulation can contact the recessed-lighting system, choose a clearly marked Type IC product and install the complete assembly exactly as evaluated. Then verify airtightness, moisture suitability, spray-foam compatibility and fire-resistance requirements separately.
